Performance characteristics: maintance-free, coaxial type, small size, high efficiency (≥92%), low noise (65dB), wide power coverage (0.1KW~3.7KW), speed ratio coverage range (3~1800), large output torque (30N ~2000N. M).
Material features: Box adopts high strength aluminum alloy casting or HT250 high strength cast iron (when ordering specify), gear are 20 crmnmo, full gear grinding process, the machining accuracy level 6, tooth surface hardness can reach HRC58-62, wheel core hardness HRC33 ~ 40, 42 crmo shaft material, oil seal using SKF/NOK/SOG/CTY/NAK import brands, such as bearing the HRB ZWZ/government/NSK SKF brand, such as grease using custom 0 # gear grease, motor adopts YE2 efficient motor, brake choose Japan sanhwa brand .

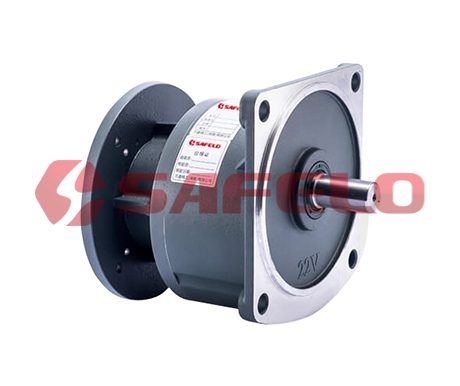

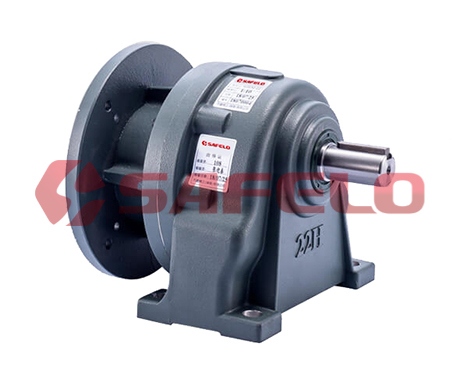

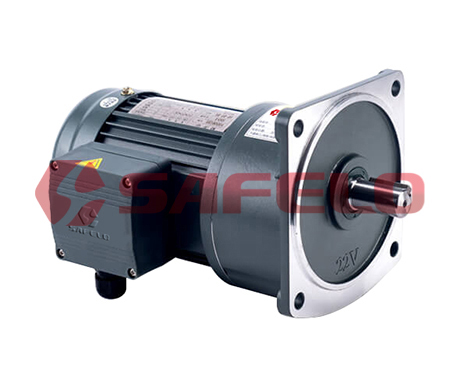

Structural features: various installation methods to meet various installation requirements: bottom Angle installation, flange installation, motor direct connection compact type, IEC input flange type.
型号 | GH18 GV18 | GH22 GV22 | GH28 GV28 | GH32 GV32 | GH40 GV40 | GH50 GV50 |
速比范围 | 3~160 | 3~1800 | 3~1800 | 3~1800 | 3~1800 | 3~1800 |
功率范围（KW） | 0.1~0.2 | 0.1~0.4 | 0.1~0.75 | 0.2~1.5 | 0.4~3.7 | 0.75~3.7 |
许可扭矩（N.m） | 30 | 60 | 120 | 260 | 800 | 1900 |
重量（kg） | 5.6~6.4 | 7~10.6 | 13~14.7 | 24.6~32.2 | 45.2~55.2 | 60.5~63.4 |
